Structural · S-JT5NR

Elevator Pit Concrete Foundation Section

Materials

Concrete Steel

Elements

Walls Doors Floors / Slabs Reinforcing

Connections

HSS Connection Rebar Splice / Development

About this detail

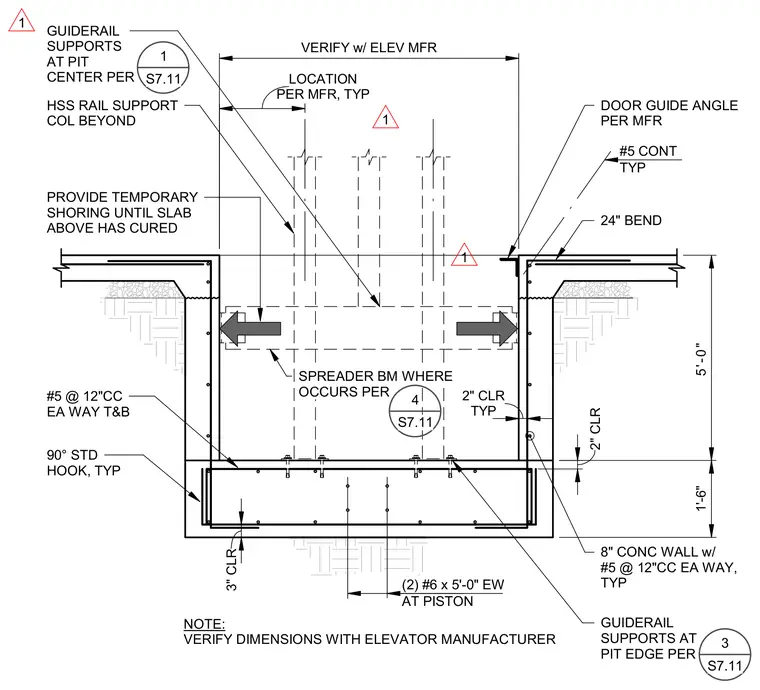

This structural section details a reinforced concrete elevator pit foundation with eight-inch concrete walls reinforced by number five bars at twelve inches on center each way, top and bottom, featuring standard ninety-degree hooks. The base slab includes continuous number five reinforcing bars and two number six by five-foot each-way bars at the piston location. A spreader beam occurs per structural drawings, accompanied by hollow structural section rail support columns beyond. Guiderail supports are positioned at the pit center and edges, and a door guide angle is installed per the manufacturer. Temporary shoring must remain in place until the slab above has cured.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
