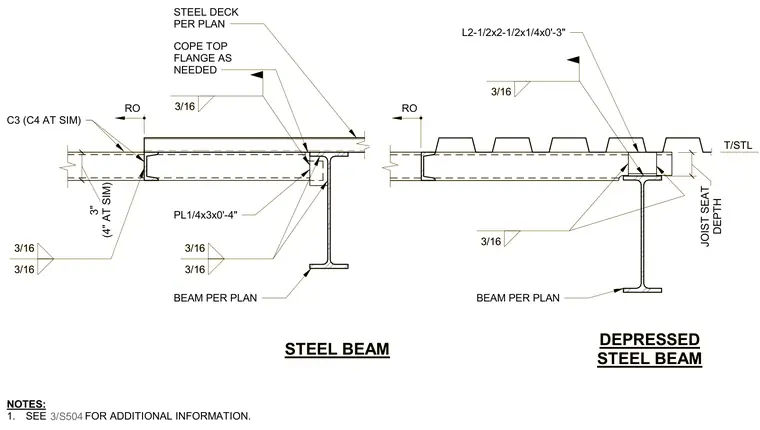

Standard and depressed steel beam framing conditions support a steel deck per plan. The assembly incorporates a joist seat with a depth of three to four inches, utilizing a top flange cope as needed. A plate measuring one-quarter by three inches by zero feet four inches and an angle measuring two and one-half by two and one-half by one-quarter inches by zero feet three inches provide connection support. Fillet welds of three-sixteenths inch secure the steel components as indicated on the drawing.
T/STL 3/16 3/16 3/16 3/16 3/16 L2-1/2x2-1/2x1/4x0'-3" STEEL DECK PER PLAN C3 (C4 AT SIM) PL1/4x3x0'-4" NOTES: 1. SEE FOR ADDITIONAL INFORMATION. DEPTH JOIST SEAT COPE TOP FLANGE AS NEEDED STEEL BEAM DEPRESSED STEEL BEAM RO RO 3/16 3/16 3/S504 (4" AT SIM) 3" BEAM PER PLAN BEAM PER PLAN T/STL 3/16 3/16 3/16 3/16 3/16 L2-1/2x2-1/2x1/4x0'-3" STEEL DECK PER PLAN C3 (C4 AT SIM) PL1/4x3x0'-4" NOTES: 1. SEE FOR ADDITIONAL INFORMATION. DEPTH JOIST SEAT COPE TOP FLANGE AS NEEDED STEEL BEAM DEPRESSED STEEL BEAM RO RO 3/16 3/16 3/S504 (4" AT SIM) 3" BEAM PER PLAN BEAM PER PLAN
