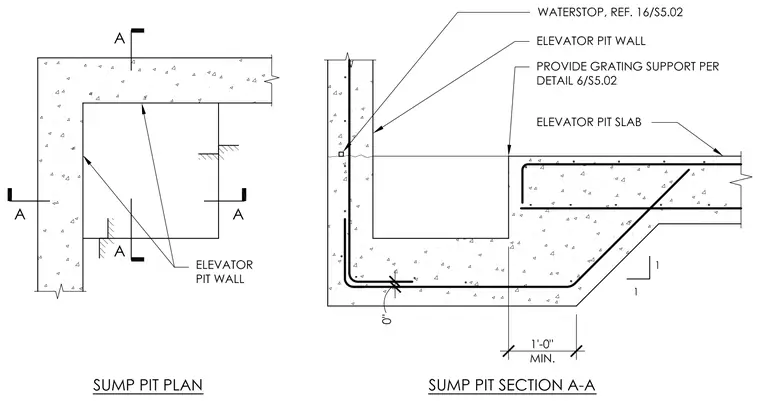

A reinforced concrete elevator pit wall intersects an elevator pit slab with an integrated sump pit. The plan view outlines the concrete elevator pit walls with section cut markers for section A-A. The sectional view details the reinforced concrete slab and wall assembly, featuring a waterstop located in the vertical wall joint and grating support requirements. Continuous reinforcing steel bars are detailed within the concrete slab and sloping haunch with a one-to-one slope transition. Minimum clearance dimensions are indicated for the sump depression offset.
