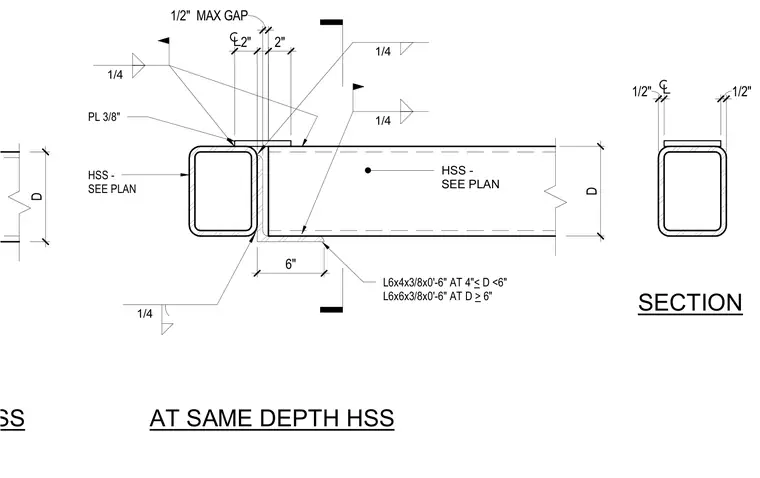

A hollow structural section member frames to another hollow structural section member of the same depth using a support angle and a 3/8-inch plate. The supporting hollow structural section receives a seat angle sized as L6x4x3/8 for depths between 4 inches and 6 inches, or L6x6x3/8 for depths greater than 6 inches, welded with 1/4-inch fillet welds. A maximum gap of 1/2 inch is maintained between the connected members, tied together across the top flange with a 3/8-inch plate welded with 1/4-inch fillet welds.
AT SAME DEPTH HSS AT DIFFERENT DEPTH HSS SECTION HSS - SEE PLAN L6x4x3/8x0'-6" AT 4"< D <6" L6x6x3/8x0'-6" AT D > 6" PL 3/8" HSS - SEE PLAN D 6" 1/2" 1/2" D 1/4 1/4 1/4 1/4 2" 2" 1/2" MAX GAP
