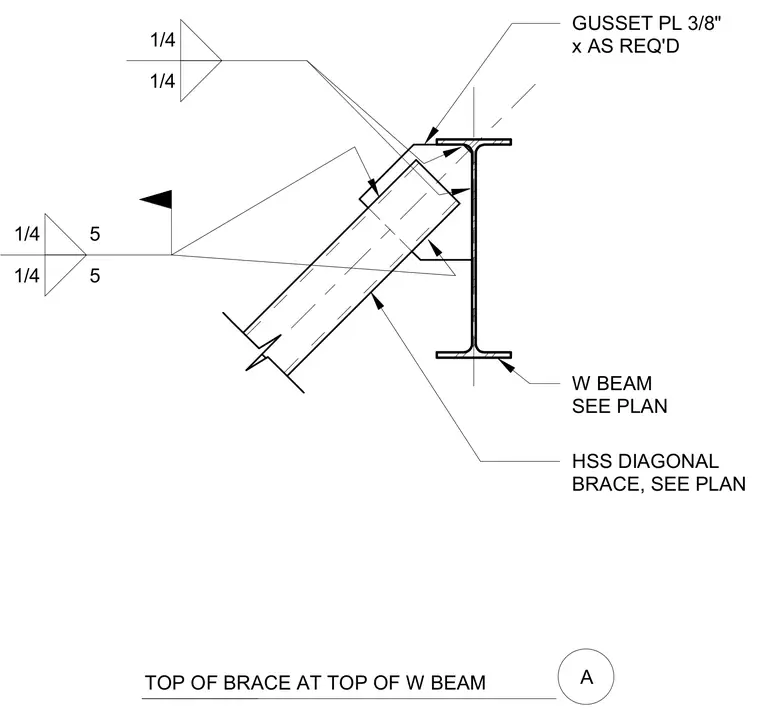

An HSS diagonal brace connects to the top of a wide flange beam using a three-eighths-inch gusset plate sized per plan. The gusset plate is welded to the beam and brace members with quarter-inch fillet welds.
1/4 5 1/4 5 1/4 1/4 W BEAM SEE PLAN HSS DIAGONAL BRACE, SEE PLAN GUSSET PL 3/8" x AS REQ'D A TOP OF BRACE AT TOP OF W BEAM
