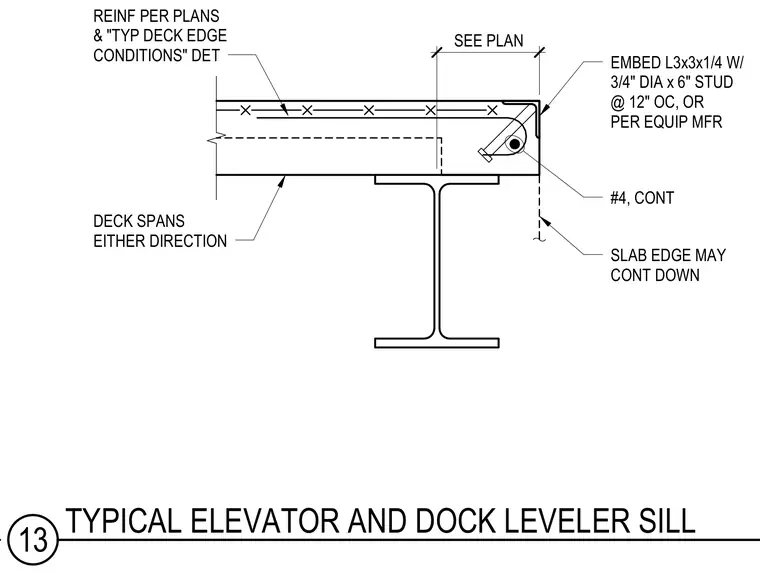

The concrete slab bears on a structural steel beam with the metal deck spanning either direction. An embedded angle measuring 3x3x1/4 inches with 3/4-inch diameter by 6-inch studs spaced at 12 inches on center is cast into the slab edge or installed per equipment manufacturer instructions. Continuous number 4 reinforcing bars run along the slab edge, which may continue downward. Additional reinforcement is provided per the plans and the typical deck edge conditions detail.
REINF PER PLANS & "TYP DECK EDGE CONDITIONS" DET EMBED L3x3x1/4 W/ 3/4" DIA x 6" STUD @ 12" OC, OR PER EQUIP MFR DECK SPANS EITHER DIRECTION SLAB EDGE MAY CONT DOWN #4, CONT 8 1/4" SEE PLAN 13 TYPICAL ELEVATOR AND DOCK LEVELER SILL
