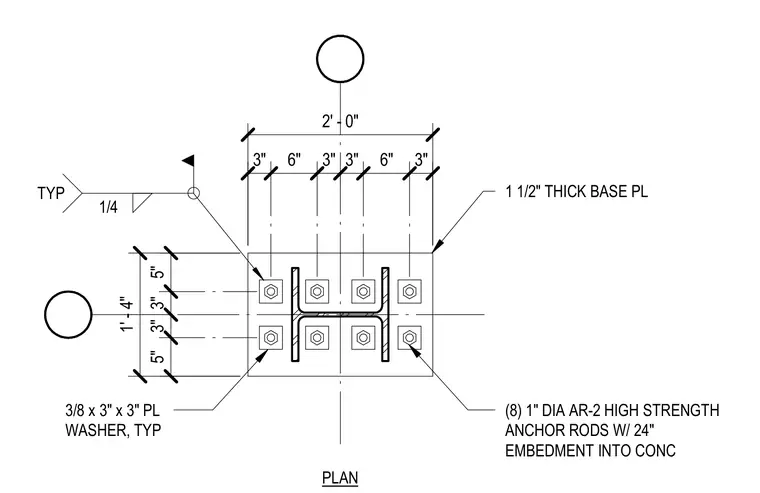

A structural steel column base connects to a concrete foundation using a one-and-a-half-inch-thick base plate secured by eight one-inch-diameter AR-2 high-strength anchor rods with twenty-four inches of embedment into concrete. Three-eighths-inch by three-inch by three-inch plate washers are provided typically at each anchor rod. A one-quarter-inch fillet weld connects the assembly.
1' - 4" 2' - 0" 3" 6" 3" 3" 6" 3" 5" 3" 3" 5" PLAN 1 1/2" THICK BASE PL 3/8 x 3" x 3" PL WASHER, TYP 1/4 TYP (8) 1" DIA AR-2 HIGH STRENGTH ANCHOR RODS W/ 24" EMBEDMENT INTO CONC
