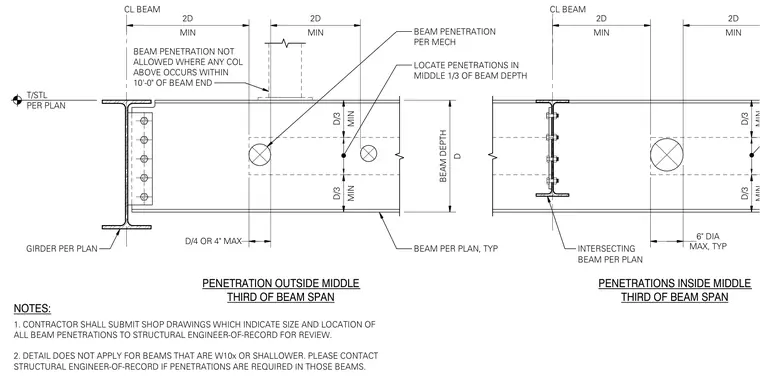

Utility penetrations through structural steel beam webs must be located within the middle third of the beam depth and span, maintaining a minimum clearance of two times the beam depth from supports and columns. Holes are restricted to a maximum diameter of six inches or one-quarter of the beam depth, whichever is less, and are prohibited entirely in beams shallower than W10 or within ten feet of a column above. Contractors must submit shop drawings indicating exact penetration sizes and locations to the structural engineer of record for review.
MIN 2D MIN 2D CL BEAM INTERSECTING BEAM PER PLAN PENETRATIONS INSIDE MIDDLE THIRD OF BEAM SPAN NOTES: 1. CONTRACTOR SHALL SUBMIT SHOP DRAWINGS WHICH INDICATE SIZE AND LOCATION OF ALL BEAM PENETRATIONS TO STRUCTURAL ENGINEER-OF-RECORD FOR REVIEW. 2. DETAIL DOES NOT APPLY FOR BEAMS THAT ARE W10x OR SHALLOWER. PLEASE CONTACT STRUCTURAL ENGINEER-OF-RECORD IF PENETRATIONS ARE REQUIRED IN THOSE BEAMS. D BEAM DEPTH BEAM PENETRATION PER MECH BEAM PER PLAN, TYP LOCATE PENETRATIONS IN MIDDLE 1/3 OF BEAM DEPTH PENETRATION OUTSIDE MIDDLE THIRD OF BEAM SPAN T/STL PER PLAN MIN D/3 MIN D/3 GIRDER PER PLAN MIN 2D CL BEAM MIN 2D BEAM PENETRATION NOT ALLOWED WHERE ANY COL ABOVE OCCURS WITHIN 10'-0" OF BEAM END MIN D/3 MIN D/3 D/4 OR 4" MAX MAX, TYP 6" DIA E0 0 Ei? 0 r I <> <> 0 15 0 0 X
