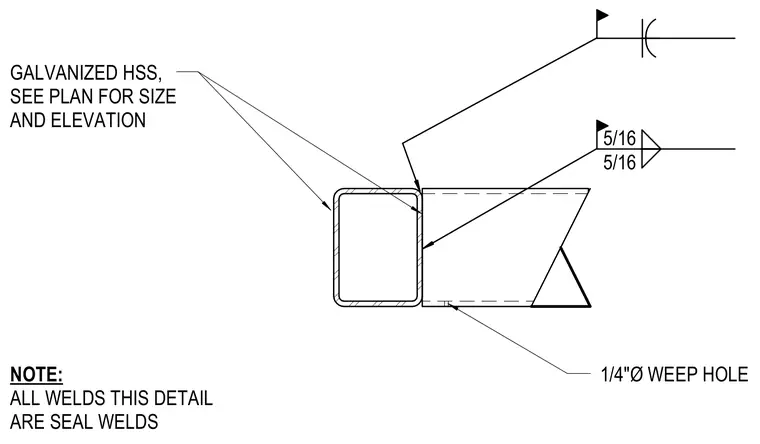

A galvanized hollow structural section features sizing per plan and is detailed with continuous field seal welds indicated by standard weld symbols. A one-quarter-inch diameter weep hole is provided at the bottom of the assembly for moisture drainage. All welds in this detail are designated as seal welds.
1/4"Ø WEEP HOLE GALVANIZED HSS, SEE PLAN FOR SIZE AND ELEVATION 5/16 5/16 NOTE: ALL WELDS THIS DETAIL ARE SEAL WELDS
