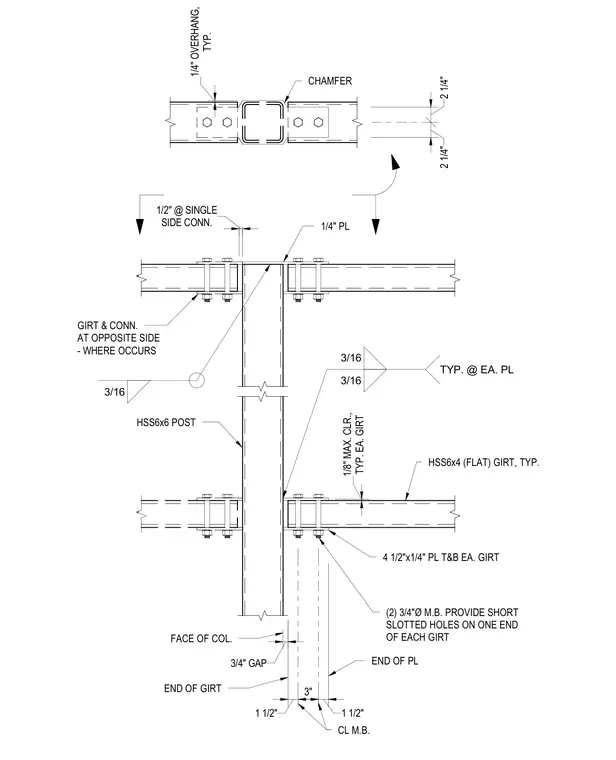

A structural connection of hollow structural section girts to a hollow structural section post at a roof screen wall. The assembly utilizes an HSS6x6 post and HSS6x4 flat girts connected via four-and-one-half-inch by one-quarter-inch top and bottom plates welded to each girt with three-sixteenth-inch fillet welds. Each girt end is secured with two three-quarter-inch-diameter machine bolts featuring short slotted holes on one end of each girt for thermal movement. A three-quarter-inch gap is maintained between the end of the girt and the face of the column. Three-sixteenth-inch fillet welds are specified typically at each plate with a one-eighth-inch maximum clearance at the girt.
1 1/2" 3" 3/4" GAP GIRT & CONN. AT OPPOSITE SIDE - WHERE OCCURS HSS6x6 POST HSS6x4 (FLAT) GIRT, TYP. 4 1/2"x1/4" PL T&B EA. GIRT (2) 3/4"Ø M.B. PROVIDE SHORT SLOTTED HOLES ON ONE END OF EACH GIRT END OF PL FACE OF COL. END OF GIRT CL M.B. 3/16 3/16 TYP. @ EA. PL 1 1/2" SIDE CONN. 1/2" @ SINGLE 1/4" PL CHAMFER TYP. 1/4" OVERHANG, 2 1/4" 2 1/4" 3/16 TYP. EA. GIRT 1/8" MAX. CLR.,
