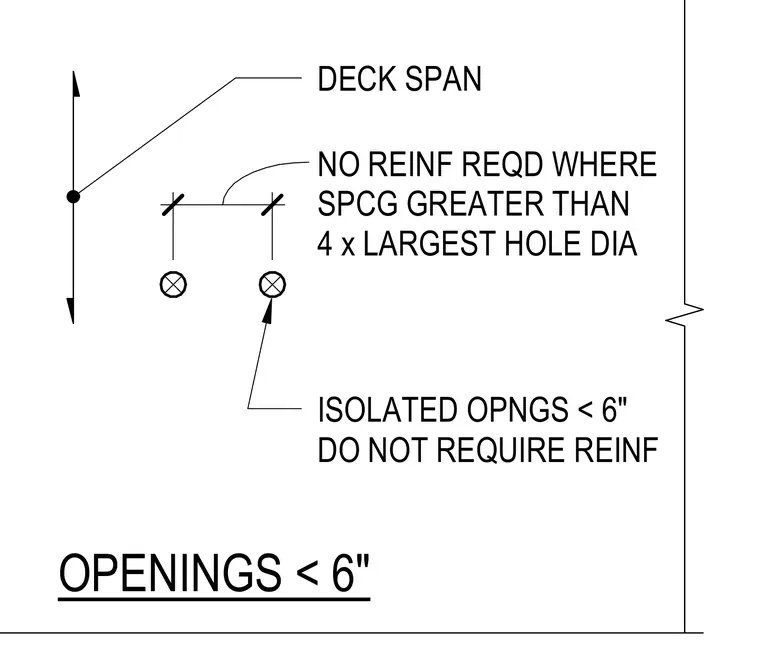

Isolated openings under six inches do not require reinforcement when the spacing is greater than four times the largest hole diameter. The deck span direction is indicated alongside the opening criteria.
OPENINGS < 6" 24" NO REINF REQD WHERE SPCG GREATER THAN 4 x LARGEST HOLE DIA ISOLATED OPNGS < 6" DO NOT REQUIRE REINF DECK SPAN
