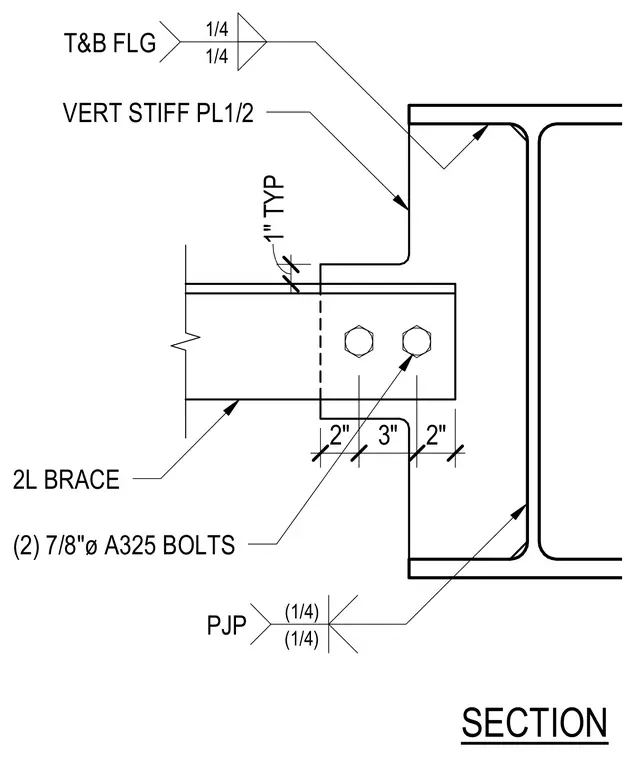

A double angle brace connects to a vertical stiffener plate using two seven-eighths inch diameter A325 bolts. The half-inch thick vertical stiffener plate is welded to the top and bottom flanges of the supporting member with quarter-inch fillet welds. A partial-joint-penetration groove weld secures the connection to the column web and flanges. Standard edge distances and spacing dimensions govern the bolt layout on the brace connection.
SECTION 2" 3" 2" 1" TYP 2L BRACE (2) 7/8"ø A325 BOLTS PJP (1/4) (1/4) VERT STIFF PL1/2 T&B FLG 1/4 1/4
