Concrete Curb and Screenwall Post Detail at Steel Beam

Materials

Concrete Reinforced Concrete

Elements

Columns Arches Site / Paving Anchors / Embeds Reinforcing

Connections

Base Plate / Anchorage

About this detail

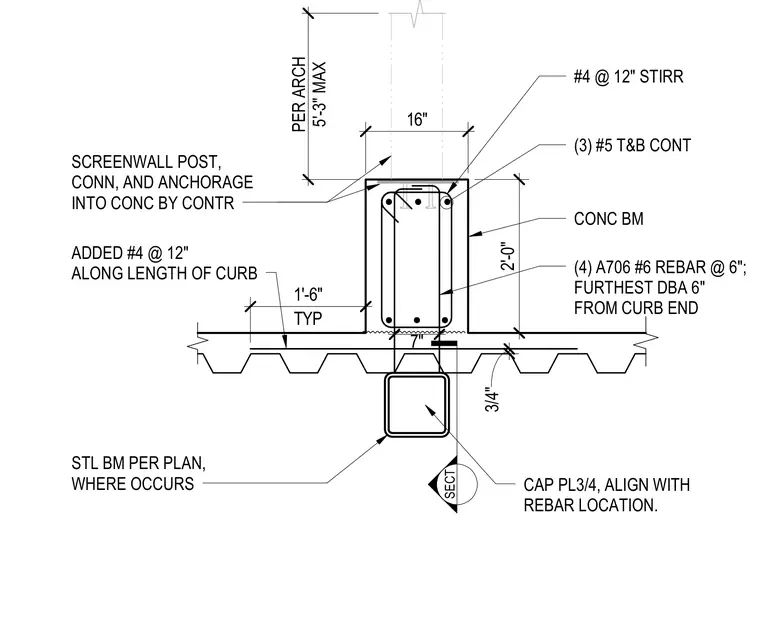

A reinforced concrete beam curb sits above a structural steel beam per plan, featuring a three-quarter-inch cap plate aligned with the rebar location. The concrete beam is reinforced with four A706 number six rebars spaced at six inches, with the furthest distance six inches from the curb end, along with three continuous number five top and bottom bars. Number four stirrups are spaced at twelve inches, with additional number four bars spaced at twelve inches along the length of the curb. A screenwall post, connection, and anchorage into the concrete are provided by the contractor, extending up to a maximum height of five feet three inches per architectural drawings.
