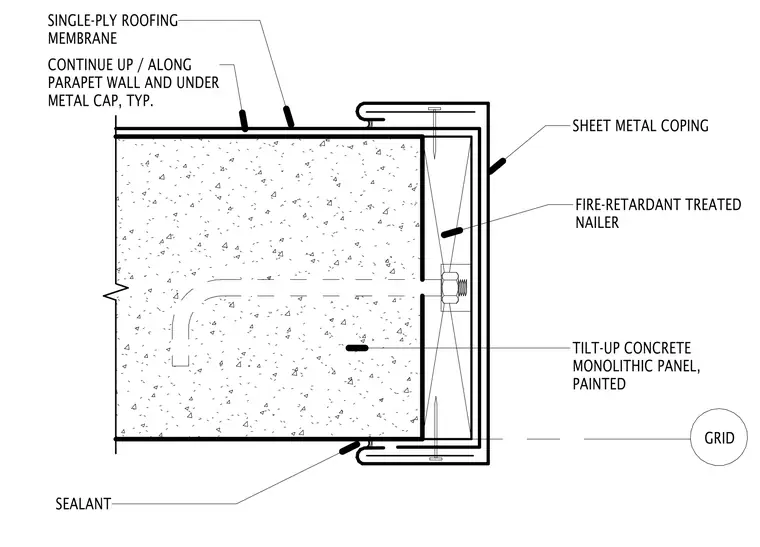

A single-ply roofing membrane continues up and along the parapet wall and under the metal cap, typically anchored over a grid tilt-up concrete monolithic panel. A fire-retardant treated wood nailer is secured to the concrete panel to receive a painted sheet metal coping. Sealant is applied at the joints of the metal coping assembly to ensure weatherproofing against moisture infiltration.
GRID TILT-UP CONCRETE MONOLITHIC PANEL, PAINTED SHEET METAL COPING FIRE-RETARDANT TREATED NAILER SEALANT SINGLE-PLY ROOFING MEMBRANE CONTINUE UP / ALONG PARAPET WALL AND UNDER METAL CAP, TYP.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
