Open web steel joist chords are reinforced with 2-by-2-by-1-eighth-inch angles placed on each side of the chord member and secured with three-sixteenth-inch typical fillet welds. This reinforcement is required for concentrated loads greater than 100 pounds located more than 2 inches away from a panel point. The detail establishes dimensional limits between the centerline of the panel point and the centerline of the concentrated load.

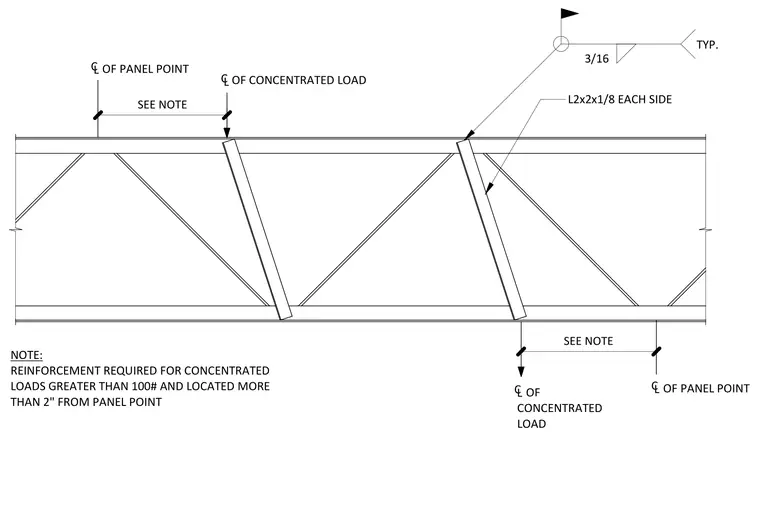

OF PANEL POINT OF CONCENTRATED LOAD OF CONCENTRATED LOAD OF PANEL POINT L2x2x1/8 EACH SIDE SEE NOTE SEE NOTE NOTE: REINFORCEMENT REQUIRED FOR CONCENTRATED LOADS GREATER THAN 100# AND LOCATED MORE THAN 2" FROM PANEL POINT 3/16 TYP. CL CL CL CL
