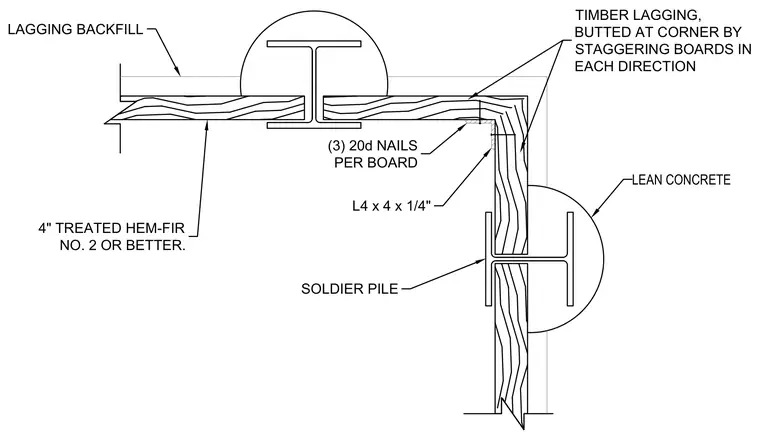

Four-inch treated Hem-Fir No. 2 or better timber lagging spans between soldier piles in an excavation shoring wall, meeting at a 90-degree corner with boards staggered in each direction. The corner is reinforced with an L4 x 4 x 1/4 inch structural steel angle secured with three 20d nails per board. Lagging backfill and lean concrete surround the steel soldier piles to stabilize the earth retention assembly.
LEAN CONCRETE TIMBER LAGGING, BUTTED AT CORNER BY STAGGERING BOARDS IN EACH DIRECTION 4" TREATED HEM-FIR NO. 2 OR BETTER. LAGGING BACKFILL SOLDIER PILE L4 x 4 x 1/4" (3) 20d NAILS PER BOARD
