Structural · S-JQFBN

Gusset Plate and Teflon Sliding Bearing Connection at WF Column and Beam

Elements

Connections

About this detail

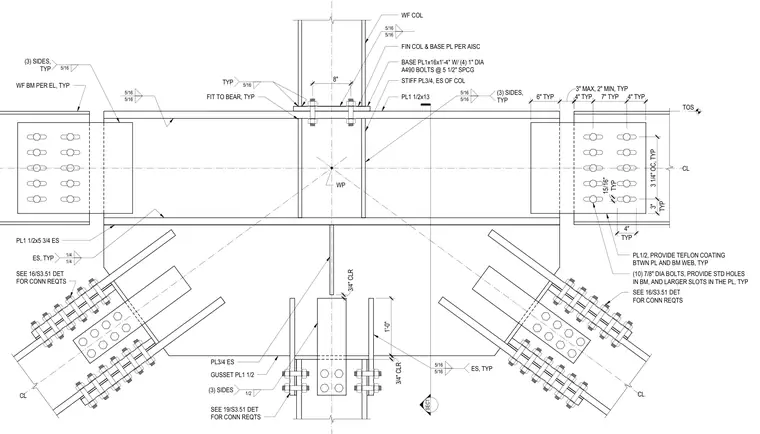

A heavy steel framing connection is centered around a wide-flange column and beam assembly with diagonal bracing. A thick gusset plate connects to the underside of the beam web and framing members using bolted connections with specific clearances and fillet welds on three sides. A base plate measuring 1 inch by 16 inches by 1 foot 4 inches is secured with four 1-inch diameter A490 bolts at 5-and-a-half-inch spacing. Stiffener plates are welded to the each side of the column, and a Teflon coating is provided between the 1/2-inch plate and the beam web with standard holes in the beam and larger slots in the plate.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
