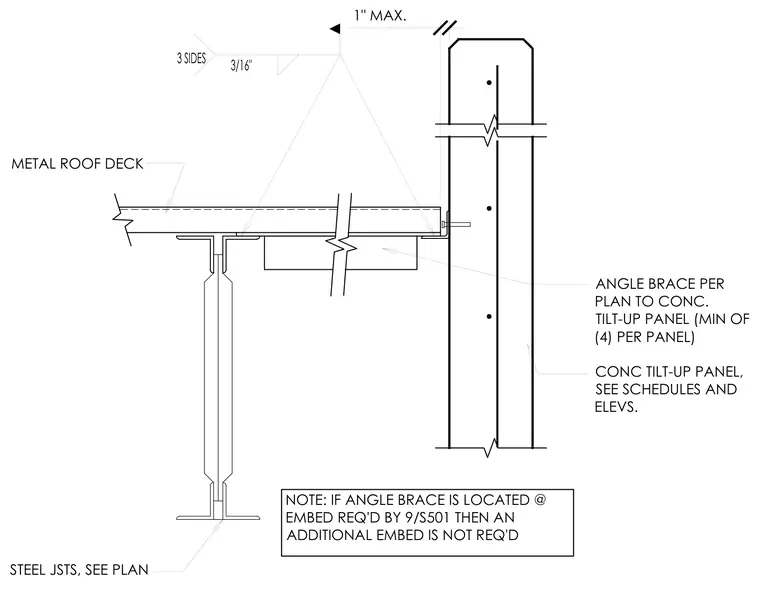

A steel joist supports a metal roof deck adjacent to a concrete tilt-up wall panel. An angle brace sized per plan connects the steel framing to the concrete tilt-up panel, requiring a minimum of four braces per panel. The steel joist bears near the wall with a maximum one-inch clearance. A three-sided three-sixteenths-inch fillet weld secures the connection where indicated. If an angle brace is located at an embed required by detail nine on sheet S501, an additional embed is not required.
METAL ROOF DECK 1" MAX. NOTE: IF ANGLE BRACE IS LOCATED @ EMBED REQ'D BY 9/S501 THEN AN ADDITIONAL EMBED IS NOT REQ'D STEEL JSTS, SEE PLAN CONC TILT-UP PANEL, SEE SCHEDULES AND ELEVS. ANGLE BRACE PER PLAN TO CONC. TILT-UP PANEL (MIN OF (4) PER PANEL) 3 SIDES 3/16"
