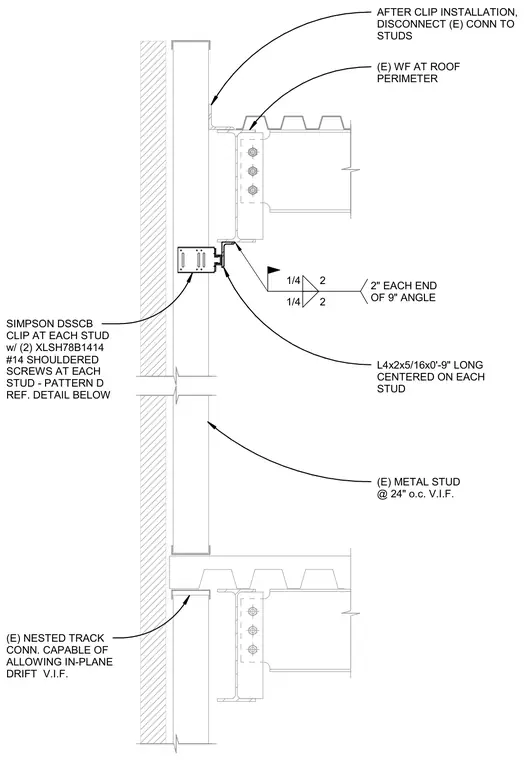

A cold-formed steel stud drift connection at an existing wide flange beam at the roof perimeter consists of existing metal stud framing at twenty-four inches on center with a Simpson DSSCB drift clip fastened with two XLSH78B1414 number fourteen shouldered screws per stud in pattern D. A four by two by five-sixteenths inch angle, nine inches long, is centered on each stud and welded with quarter-inch fillet welds. The existing connection to the studs is disconnected after the clip installation to allow in-plane drift. An existing nested track connection below accommodates vertical movement.
1/4 2 1/4 2 2" EACH END OF 9" ANGLE AFTER CLIP INSTALLATION, DISCONNECT (E) CONN TO STUDS (E) WF AT ROOF PERIMETER L4x2x5/16x0'-9" LONG CENTERED ON EACH STUD SIMPSON DSSCB CLIP AT EACH STUD w/ (2) XLSH78B1414 #14 SHOULDERED SCREWS AT EACH STUD - PATTERN D REF. DETAIL BELOW (E) METAL STUD @ 24" o.c. V.I.F. (E) NESTED TRACK CONN. CAPABLE OF ALLOWING IN-PLANE DRIFT V.I.F.
