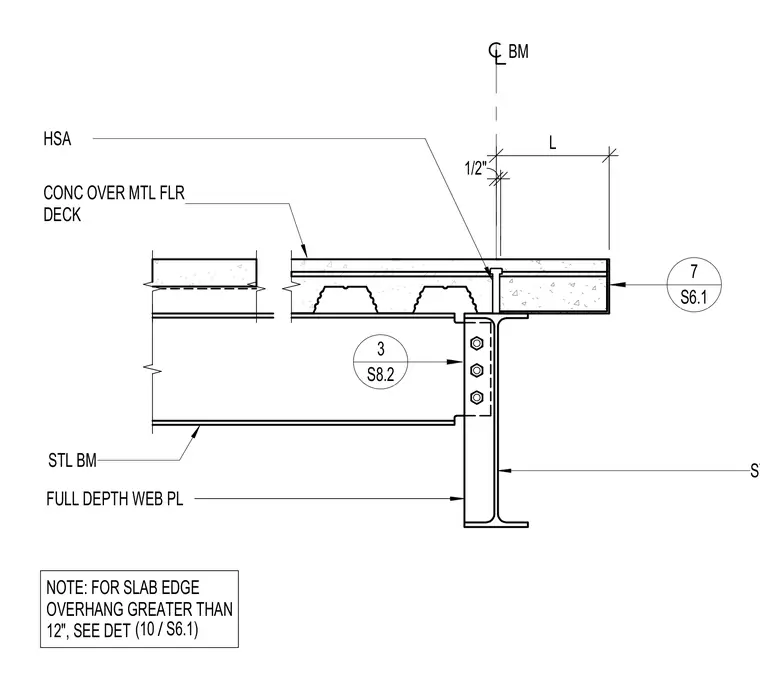

A concrete slab over metal floor deck bears on a steel beam supported by a steel beam column connection with a full depth web plate. The assembly includes a headed stud anchor and a one half inch dimension for overhang spacing from the beam centerline. A drawing note directs users to detail 10 on sheet S6.1 for slab edge overhangs greater than 12 inches.
STL BM CONC OVER MTL FLR DECK L 1/2" HSA STL BM BM NOTE: FOR SLAB EDGE OVERHANG GREATER THAN 12", SEE DET FULL DEPTH WEB PL 3 S8.2 7 S6.1 / (10 S6.1)
