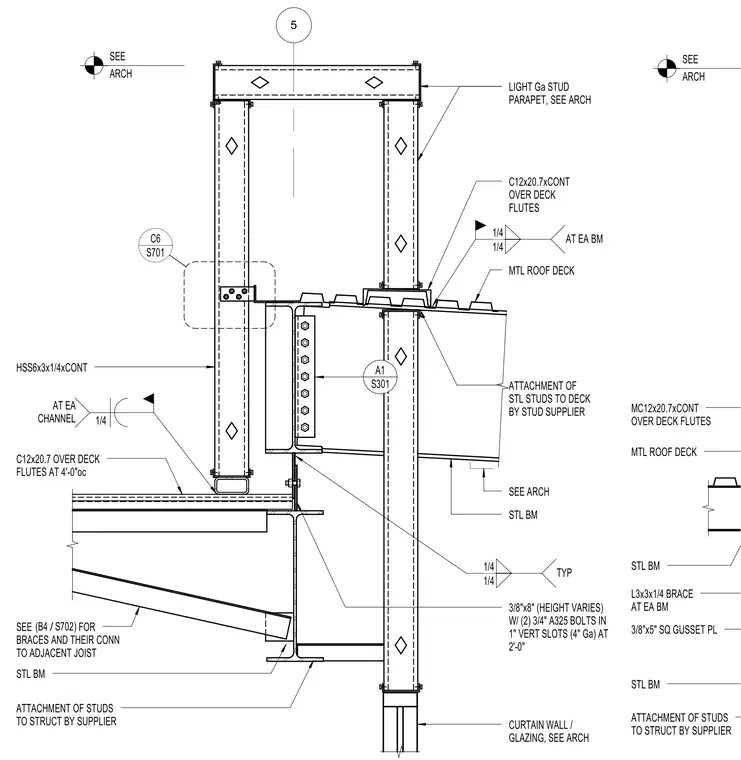

A hollow structural section member HSS6x3x1/4 continuous support ties into a continuous channel C12x20.7 over deck flutes at four feet on center. A steel beam supports the metal roof deck with attachment of steel studs provided by the supplier. A three-eighths by eight-inch plate with variable height uses two three-quarters-inch A325 bolts in one-inch vertical slots at four-inch gauge at two feet zero inches spacing. An L3x3x1/4 brace connects at each beam with a three-eighths by five-inch square gusset plate and quarter-inch fillet welds.
SEE ARCH 5 ATTACHMENT OF STUDS TO STRUCT BY SUPPLIER STL BM LIGHT Ga STUD PARAPET, SEE ARCH C12x20.7xCONT OVER DECK FLUTES MTL ROOF DECK SEE ARCH STL BM 3/8"x8" (HEIGHT VARIES) W/ (2) 3/4" A325 BOLTS IN 1" VERT SLOTS (4" Ga) AT 2'-0" SEE FOR BRACES AND THEIR CONN TO ADJACENT JOIST CURTAIN WALL / GLAZING, SEE ARCH / (B4 S702) C12x20.7 OVER DECK FLUTES AT 4'-0"oc HSS6x3x1/4xCONT S701 C6 S301 A1 AT EA BM 1/4 1/4 TYP 1/4 1/4 AT EA CHANNEL 1/4 ATTACHMENT OF STL STUDS TO DECK BY STUD SUPPLIER SEE ARCH MC12x20.7xCONT OVER DECK FLUTES MTL ROOF DECK STL BM ATTACHMENT OF STUDS TO STRUCT BY SUPPLIER STL BM L3x3x1/4 BRACE AT EA BM 3/8"x5" SQ GUSSET PL
