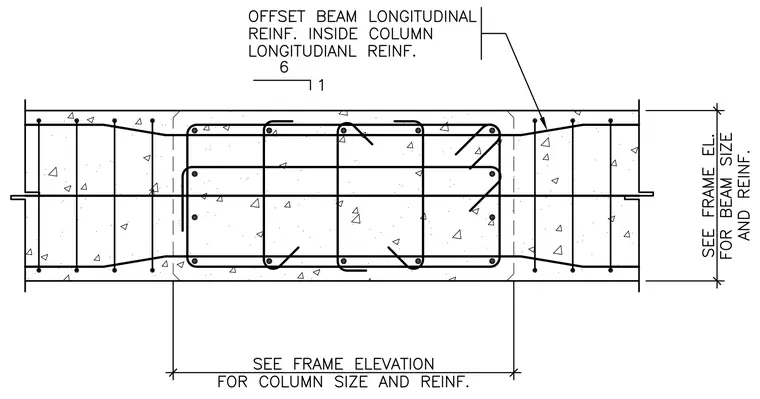

Offset beam longitudinal reinforcement is placed inside the column longitudinal reinforcement within a reinforced concrete moment frame connection. The assembly coordinates intersecting beam and column rebar cages based on framing elevations for column size, beam size, and reinforcement. Transverse ties confine the joint zone while longitudinal bars anchor continuously through the intersection.
