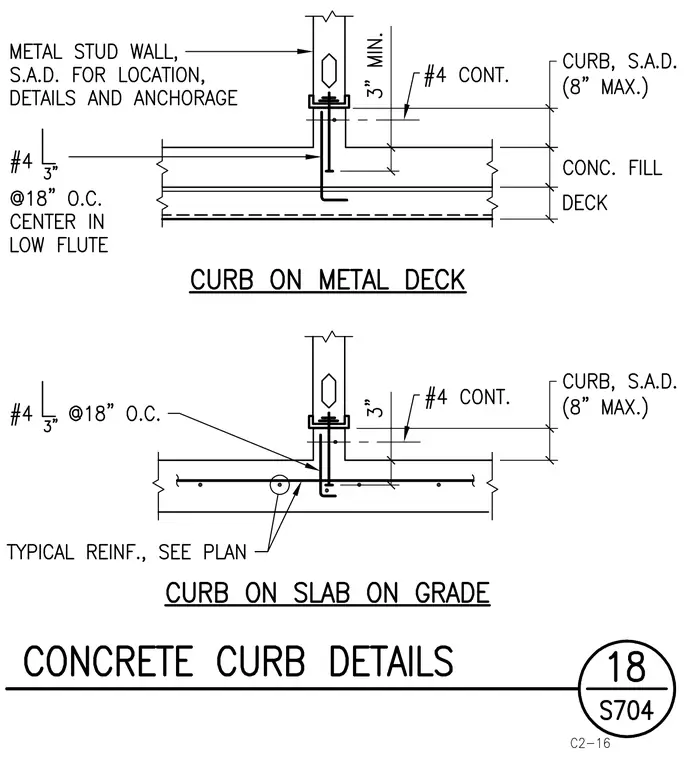

A concrete curb with a maximum height of eight inches sits atop a concrete fill over a metal deck, anchoring a metal stud wall positioned per architectural details. The curb incorporates a continuous number four rebar near the top and number four dowels spaced at eighteen inches on center centered in the low flute of the deck. A similar curb condition is detailed on a slab on grade, utilizing continuous number four rebar and number four dowels spaced at eighteen inches on center with typical reinforcement sized per plan. The metal stud wall above is anchored into the curb with a minimum three inch embedment clearance.
