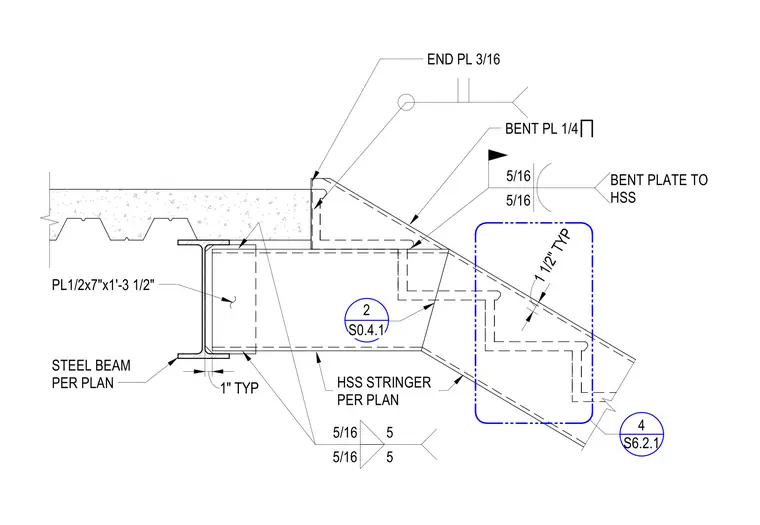

A hollow structural section stair stringer connects to a supporting steel beam sized per plan using a series of welded plates. A one-half-inch by seven-inch by one-foot-three-and-a-half-inch plate is welded to the steel beam with five-sixteenths inch welds. A three-sixteenths inch end plate and a one-quarter inch bent plate connect the stringer assembly with five-sixteenths inch fillet welds typical.
1" TYP 1 1/2" TYP END PL 3/16 PL1/2x7"x1'-3 1/2" STEEL BEAM PER PLAN BENT PL 1/4 HSS STRINGER PER PLAN 5/16 5/16 BENT PLATE TO HSS 5/16 5 5/16 5 S6.2.1 4 2 S0.4.1
