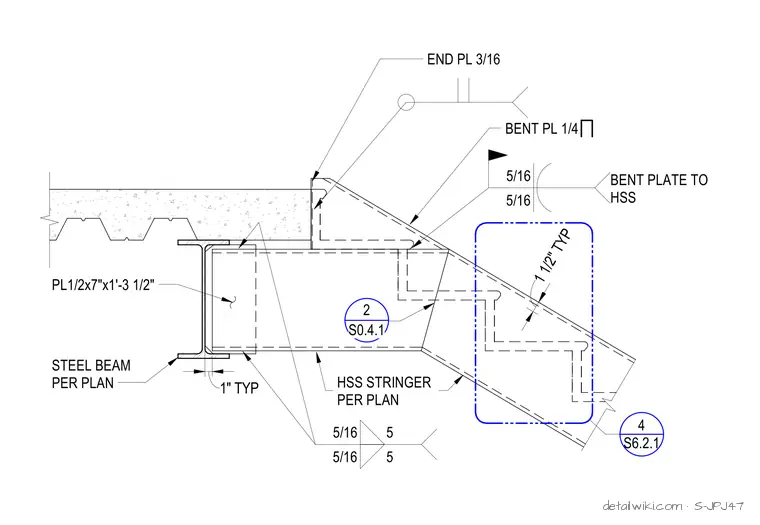

The assembly features a hollow structural section (HSS) stair stringer connected to a steel beam via bent plates, end plates, and welded connections. A steel plate (PL 1/2 x 7 x 1'-3 1/2") ties into the steel beam web, and 5/16-inch welds are specified throughout the connection details. The stair stringer supports a formed stair profile interfacing with a concrete slab on metal deck.
Text on the drawing
1" TYP 1 1/2" TYP END PL 3/16 PL1/2x7"x1'-3 1/2" STEEL BEAM PER PLAN BENT PL 1/4 HSS STRINGER PER PLAN 5/16 5/16 BENT PLATE TO HSS 5/16 5 5/16 5 S6.2.1 4 2 S0.4.1
