Structural · S-JPFW3

W Girder and W Beam with Equal Depth

Materials

weld

Elements

Beams Connections / Plates

Connections

Welded Connection

About this detail

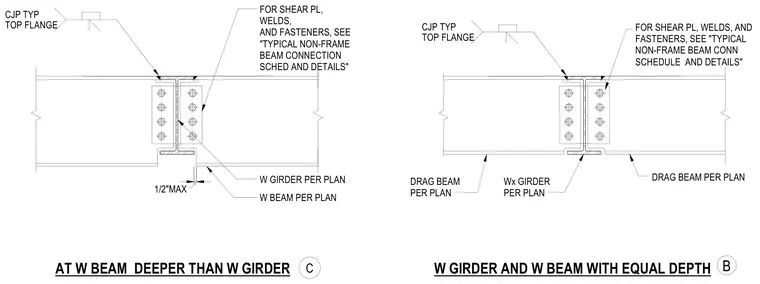

Two structural steel beam-to-girder framing conditions incorporate connections for equal and unequal depth members. The first detail features a wide-flange beam deeper than a wide-flange girder, utilizing a complete joint penetration weld typically at the top flange, a one-half inch maximum clearance gap, and a bolted shear plate connection sized per plan. The second detail includes a wide-flange girder and wide-flange beam of equal depth framing into a drag beam, utilizing a complete joint penetration top flange weld and a standard bolted shear plate connection.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
