Steel Beam and Joist Bearing at Exterior Stud Wall

Materials

Steel Timber / Wood Glass / Glazing Metal (misc.)

Elements

Beams Walls Windows Roofs Decks Arches Bracing Insulation

Connections

Bracing Connection Bolted Connection

About this detail

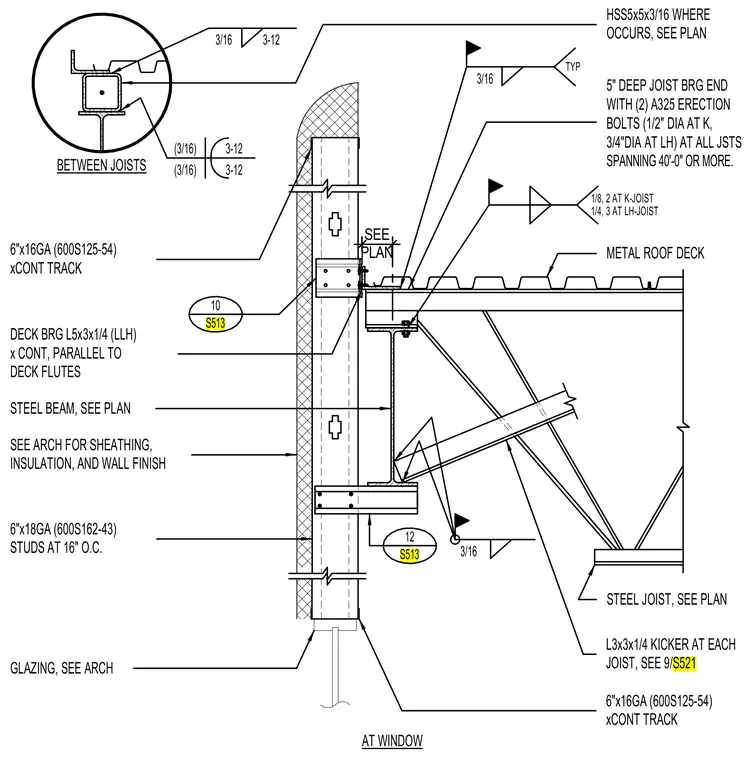

A steel beam supports a roof assembly featuring metal deck and steel joists with five-inch deep bearing ends secured by two A325 erection bolts. An L5x3x1/4 continuous angle runs parallel to the deck flutes for deck bearing. An HSS5x5x3/16 structural tube occurs where indicated, welded with three-sixteenths inch welds at twelve-inch intervals. An L3x3x1/4 kicker angle is provided at each joist and left welded with three-sixteenths inch welds. The exterior wall consists of six-inch by sixteen-gauge continuous tracks and six-inch by eighteen-gauge studs spaced at sixteen inches on center, supporting architectural sheathing, insulation, wall finish, and window glazing.
