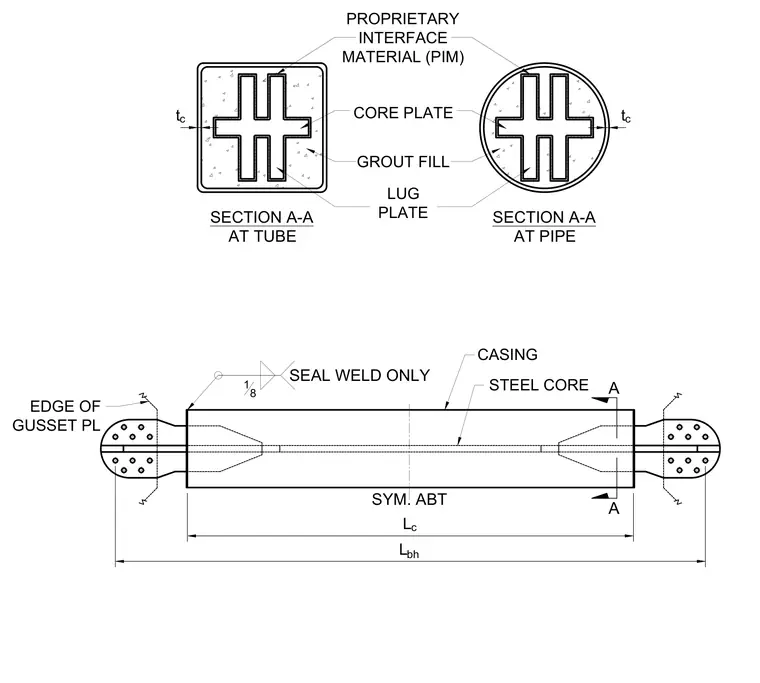

A structural steel core assembly features a cruciform steel core housed inside a tubular or pipe casing with a cementitious grout fill and proprietary interface material. The steel core extends to bolted connections at each end through gusset plates and lug plates. A one-eighth inch seal weld is specified at the casing connections with instructions for a seal weld only. The assembly is symmetrical about the centerline.
LUG PLATE PROPRIETARY INTERFACE MATERIAL (PIM) t c t c GROUT FILL CORE PLATE SECTION A-A AT TUBE SECTION A-A AT PIPE EDGE OF GUSSET PL SEAL WELD ONLY 18 L c L bh SYM. ABT STEEL CORE CASING A A
