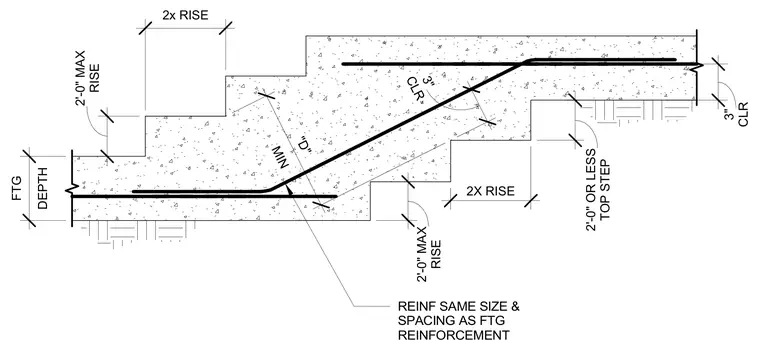

A stepped concrete footing with continuous reinforcing steel features bottom footing reinforcement continuing through the step with a diagonal lap splice matching the size and spacing of the footing reinforcement. A minimum clear cover of three inches is maintained throughout the footing and steps. The step dimensions include a maximum rise of two feet and a run defined as twice the rise.
DEPTH FTG REINF SAME SIZE & SPACING AS FTG REINFORCEMENT CLR 3" 2x RISE RISE 2'-0" MAX RISE 2'-0" MAX 2X RISE TOP STEP 2'-0" OR LESS MIN "D" CLR 3"
