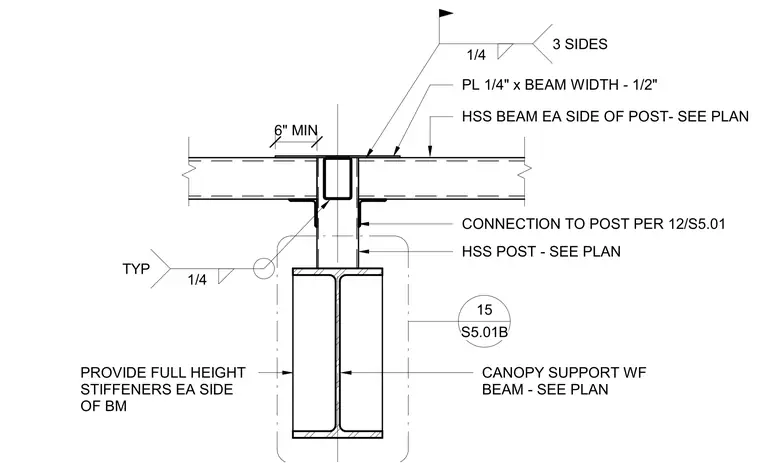

A canopy support wide flange beam connects to an HSS post sized per plan with a one-quarter-inch plate welded across the beam width. Hollow structural section beams run on each side of the post as sized per plan, maintaining a six-inch minimum clearance. Full-height stiffener plates are provided on each side of the beam web. Fillet welds of one-quarter-inch size are specified on three sides where indicated.
CANOPY SUPPORT WF BEAM - SEE PLAN HSS POST - SEE PLAN PL 1/4" x BEAM WIDTH - 1/2" HSS BEAM EA SIDE OF POST- SEE PLAN 6" MIN CONNECTION TO POST PER 12/S5.01 1/4 3 SIDES 1/4 TYP S5.01B 15 PROVIDE FULL HEIGHT STIFFENERS EA SIDE OF BM
