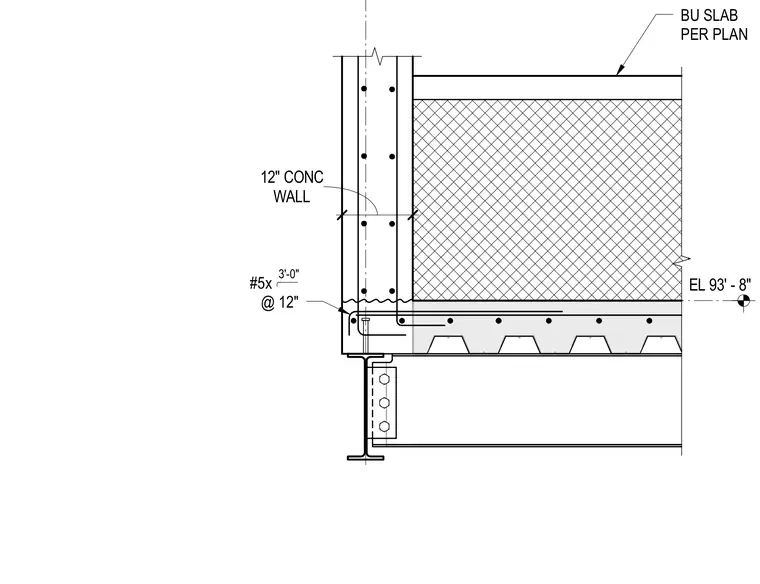

A twelve-inch concrete wall sits above a build-up slab supported by a structural steel beam. Number five reinforcing bars at twelve inches on center with three-foot laps tie the wall and slab assembly together at elevation ninety-three feet eight inches. The composite metal deck slab is detailed per plan and bears on the supporting steel framing.
