Structural · S-JNPXR

Hollow Structural Section Veneer Support at Steel Beam and Metal Deck

Materials

Steel Cold-formed Steel Timber / Wood Glass / Glazing Metal (misc.)

Elements

Beams Walls Windows Facades / Cladding Roofs Decks Arches Bracing

Connections

HSS Connection Bracing Connection

About this detail

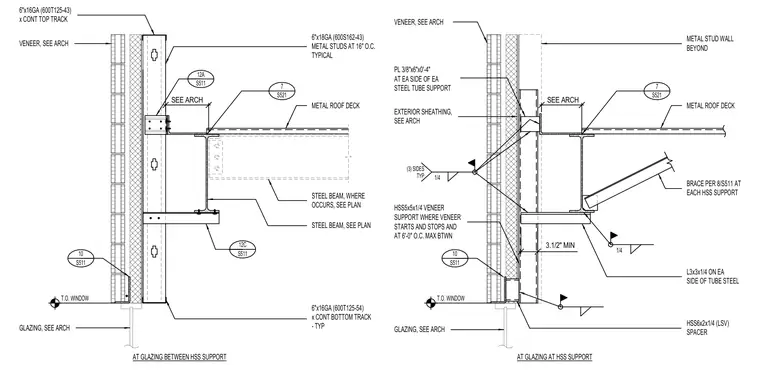

Veneer support connections occur at steel framing with metal roof deck and cold-formed metal stud backing. An HSS5x5x1/4 hollow structural section provides veneer support where the veneer starts and stops, spaced at a maximum of six feet on center between window heads. A 3/8-inch by 6-inch by 0-foot-4-inch plate is welded to each side of the steel tube support with quarter-inch fillet welds on three sides. An L3x3x1/4 angle is attached on each side of the tube steel, supported by an HSS6x2x1/4 spacer. Cold-formed steel framing consists of six-inch 18-gauge metal studs at 16 inches on center, bounded by continuous top and bottom tracks. Additional lateral stability is provided by bracing per detail 8/S511 at each HSS support.
