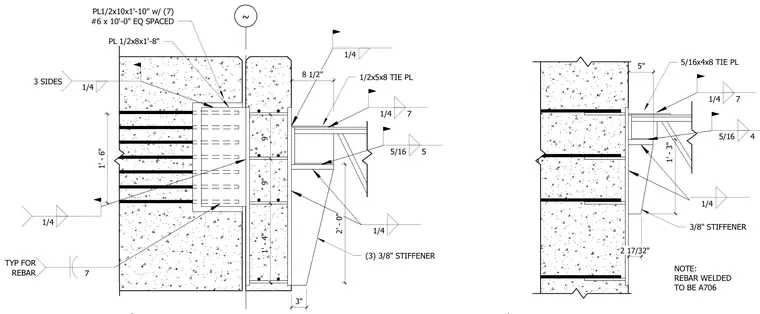

This structural connection detail features a 1/2-inch by 10-inch by 1-foot 10-inch embedded steel plate anchored with seven equally spaced number 6 reinforcing bars measuring 10 feet long, welded to conform to ASTM A706. A matching 1/2-inch by 8-inch by 1-foot 8-inch plate connects to the assembly with 1/4-inch fillet welds on three sides. Tie plates measuring 1/2-inch by 5-inch by 8-inch and 5/16-inch by 4-inch by 8-inch are attached with 1/4-inch and 5/16-inch fillet welds. Three 3/8-inch stiffener plates provide additional support to the connection assembly.
3 SIDES 1/4 1/4 PL 1/2x8x1'-8" PL1/2x10x1'-10" w/ (7) #6 x 10'-0" EQ SPACED TYP FOR REBAR 7 ~ 3" 8 1/2" 2' - 0" 1' - 3" 2 17/32" 5" 1' - 6" 1' - 4" 9" 9" (3) 3/8" STIFFENER 3/8" STIFFENER NOTE: REBAR WELDED TO BE A706 1/4 1/4 1/2x5x8 TIE PL 1/4 7 1/4 5/16 5 1/4 7 5/16 4 5/16x4x8 TIE PL
