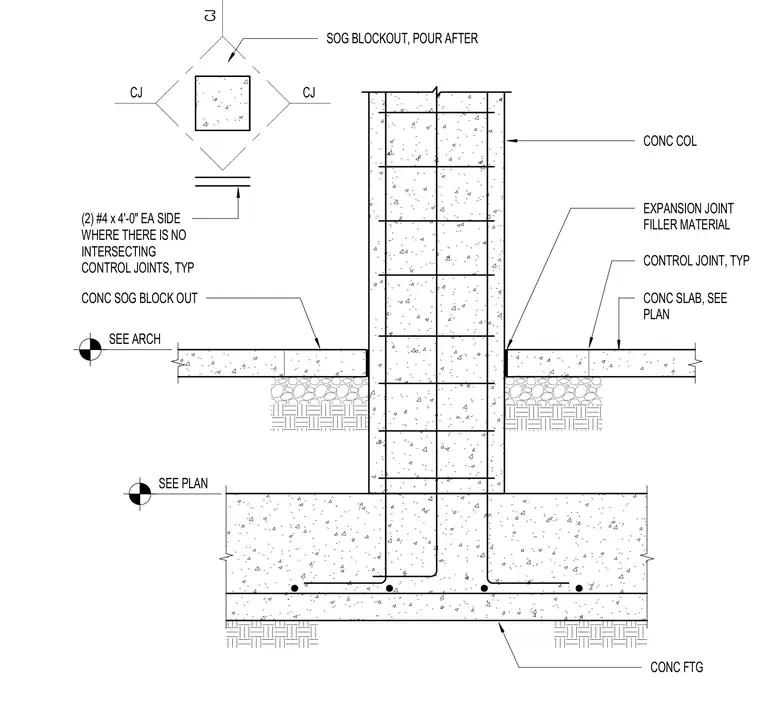

An interior concrete column rises from a concrete footing, isolated from the surrounding concrete slab on grade by expansion joint filler material. The slab on grade features a designated blockout poured after initial construction, reinforced with two number four bars four feet long on each side where intersecting control joints are absent. Control joints are placed typically in the surrounding slab. Additional references coordinate with architectural plans.
CONC FTG EXPANSION JOINT FILLER MATERIAL CONC SLAB, SEE PLAN CONC COL SOG BLOCKOUT, POUR AFTER (2) #4 x 4'-0" EA SIDE WHERE THERE IS NO INTERSECTING CONTROL JOINTS, TYP SEE ARCH SEE PLAN CJ CJ CJ CONTROL JOINT, TYP CONC SOG BLOCK OUT
