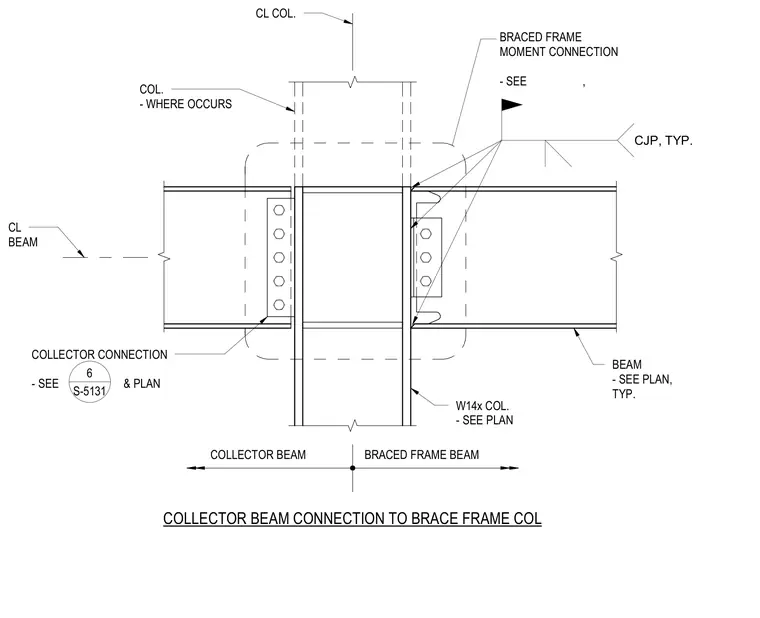

A collector beam and a braced frame beam connect to a W14x column. The connection features a braced frame moment connection utilizing complete joint penetration welds typically throughout. Bolted shear connections join the beams to the column flanges with typical vertical bolt patterns. Additional collector beam connections occur where specified on the structural plans.
W14x COL. - SEE PLAN BRACED FRAME MOMENT CONNECTION - SEE , BEAM - SEE PLAN, TYP. CL BEAM CJP, TYP. CL COL. COL. - WHERE OCCURS COLLECTOR CONNECTION - SEE & PLAN 6 S-5131 COLLECTOR BEAM BRACED FRAME BEAM COLLECTOR BEAM CONNECTION TO BRACE FRAME COL
