Structural · S-JN79H

Composite Beam Framing and Shear Connection at Steel Column

Materials

Concrete Steel Metal (misc.)Composite

Elements

Columns Beams Floors / Slabs Decks

Connections

Shear Stud / Composite

About this detail

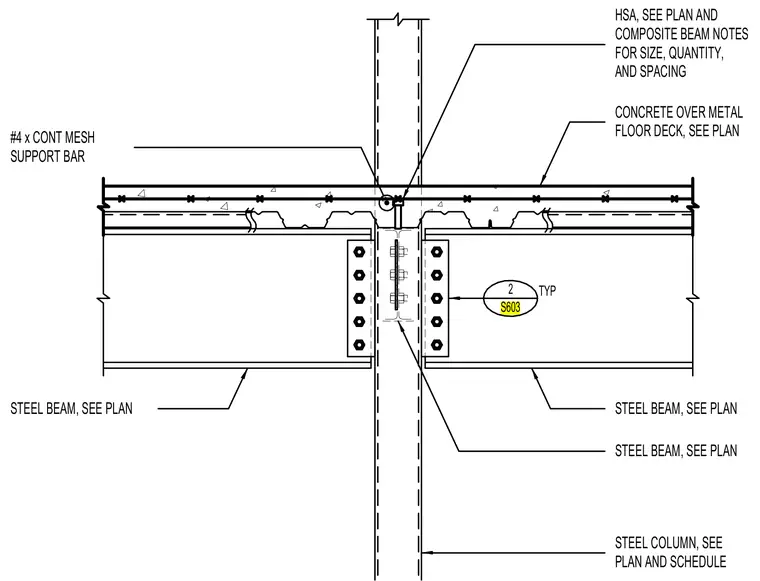

Steel beams frame into opposite flanges of a steel column using bolted shear tab connections. A concrete slab over a metal floor deck bears atop the steel framing, incorporating shear studs welded through the deck to the top flange of the beam. A number four continuous mesh support bar runs parallel to the framing within the concrete topping over the deck.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
