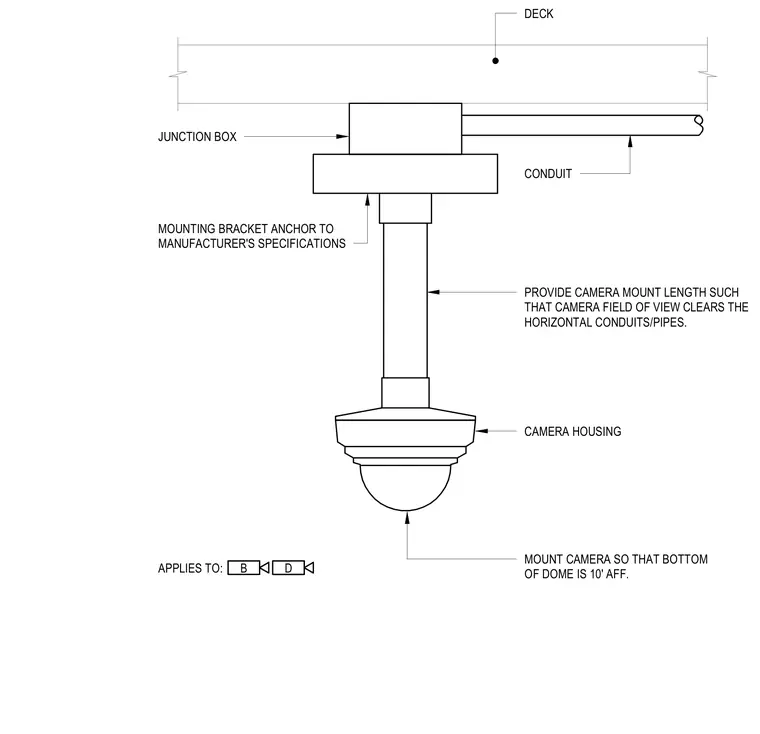

An interior security camera housing is suspended from an overhead deck via a pendant mount. A junction box anchors directly to the deck with connecting electrical conduit routing horizontally. The mounting bracket is secured using manufacturer-specified anchors. The pendant drop length is sized to ensure the camera's field of view clears all horizontal conduits and pipes, with the bottom of the dome positioned at ten feet above finished floor.
JUNCTION BOX MOUNTING BRACKET ANCHOR TO MANUFACTURER'S SPECIFICATIONS CONDUIT DECK PROVIDE CAMERA MOUNT LENGTH SUCH THAT CAMERA FIELD OF VIEW CLEARS THE HORIZONTAL CONDUITS/PIPES. CAMERA HOUSING APPLIES TO: B MOUNT CAMERA SO THAT BOTTOM OF DOME IS 10' AFF. D
