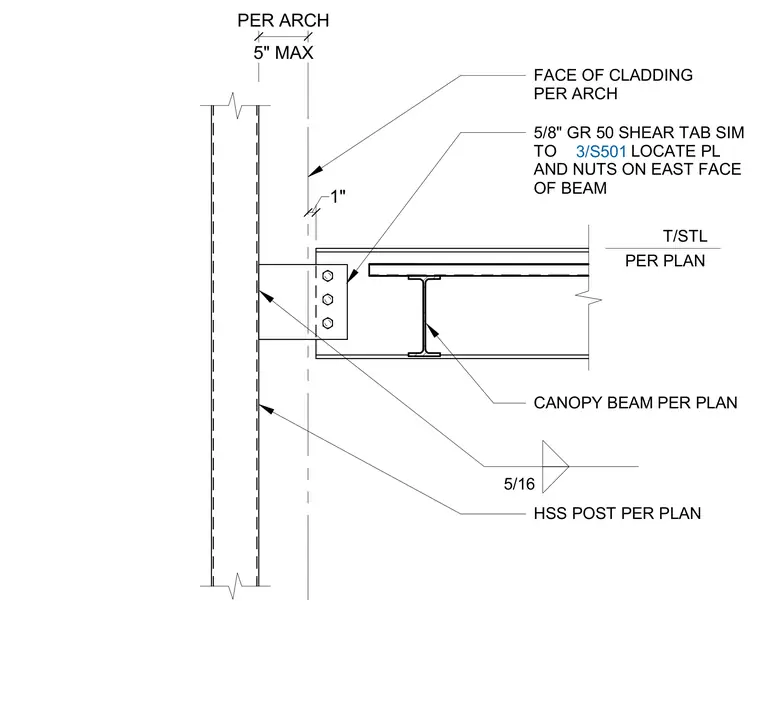

A canopy beam connects to a hollow structural section post using a five-eighths-inch Grade 50 shear tab welded with a five-sixteenths fillet weld. The plate and nuts are located on the east face of the beam. A one-inch clearance is maintained from the face of the cladding, which is positioned per architectural drawings.
T/STL PER PLAN 5/16 FACE OF CLADDING PER ARCH HSS POST PER PLAN CANOPY BEAM PER PLAN 5/8" GR 50 SHEAR TAB SIM TO . LOCATE PL AND NUTS ON EAST FACE OF BEAM 3/S501 5" MAX PER ARCH 1"
