Concrete Wall and Footing Reinforcing Details

Elements

Walls Foundations / Footings Reinforcing

Connections

About this detail

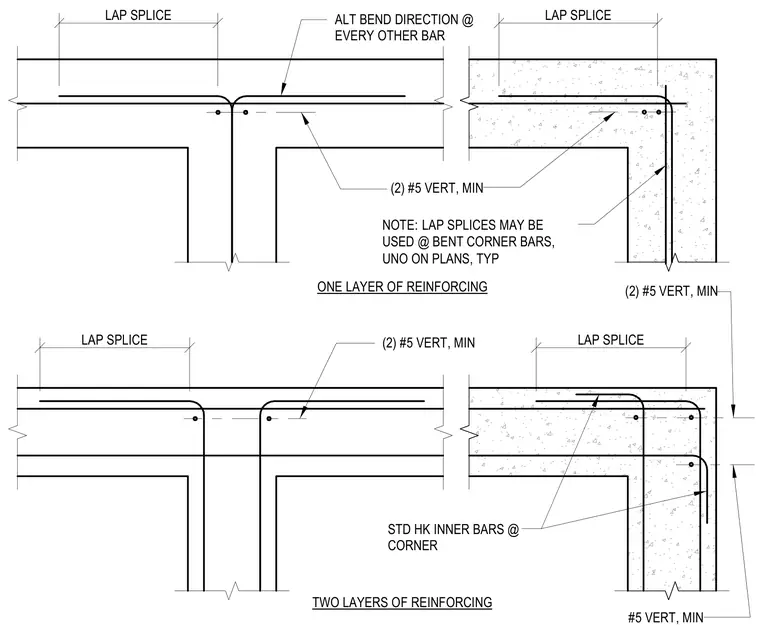

Concrete wall and footing reinforcing layouts for both single and double layer conditions at T-intersections and corners. The single layer assembly features alternating bend directions at every other bar and lap splices with two number five minimum vertical bars. The two layer assembly incorporates standard hooks on inner bars at corners and lap splices as required. Unless noted otherwise on plans, lap splices may be used at bent corner bars.
