A structural steel davit socket pedestal is welded atop a beam that frames into a column with an offset connection. The beam web connects to three-eighths-inch stiffener plates on each side of the column using one-quarter-inch fillet welds. A one-half-inch by four-inch plate sized one inch wider than the beam flange is welded to the flanges with one-quarter-inch fillet welds.

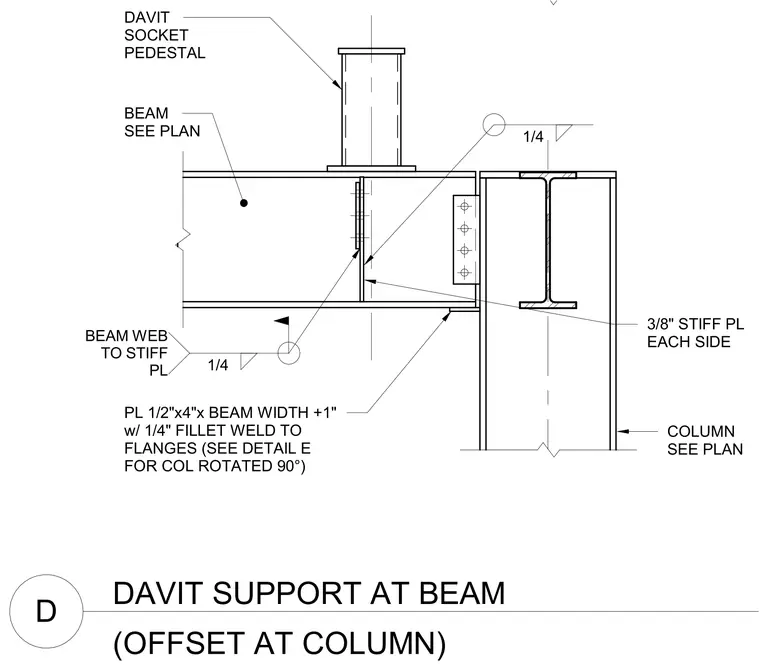

(OFFSET AT COLUMN) DAVIT SUPPORT AT BEAM D PL 1/2"x4"x BEAM WIDTH +1" w/ 1/4" FILLET WELD TO FLANGES (SEE DETAIL E FOR COL ROTATED 90°) BEAM SEE PLAN DAVIT SOCKET PEDESTAL 3/8" STIFF PL EACH SIDE COLUMN SEE PLAN 1/4 1/4 BEAM WEB TO STIFF PL
