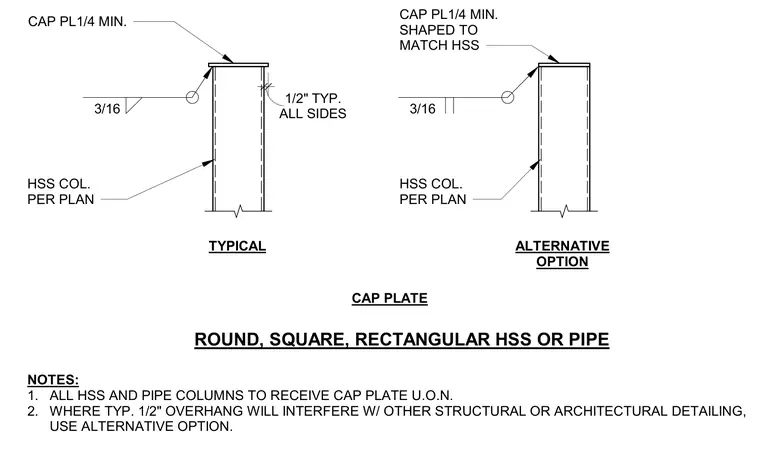

Hollow structural section columns are capped with a minimum one-quarter inch steel plate welded with a three-sixteenths inch fillet weld. The standard configuration features a one-half inch overhang on all sides. An alternative option is provided where the cap plate is shaped flush to match the hollow structural section profile to prevent interference with adjacent structural or architectural detailing.
NOTES: 1. ALL HSS AND PIPE COLUMNS TO RECEIVE CAP PLATE U.O.N. 2. WHERE TYP. 1/2" OVERHANG WILL INTERFERE W/ OTHER STRUCTURAL OR ARCHITECTURAL DETAILING, USE ALTERNATIVE OPTION. ROUND, SQUARE, RECTANGULAR HSS OR PIPE ALL SIDES 1/2" TYP. 3/16 CAP PL1/4 MIN. HSS COL. PER PLAN TYPICAL 3/16 CAP PL1/4 MIN. SHAPED TO MATCH HSS HSS COL. PER PLAN ALTERNATIVE OPTION CAP PLATE
