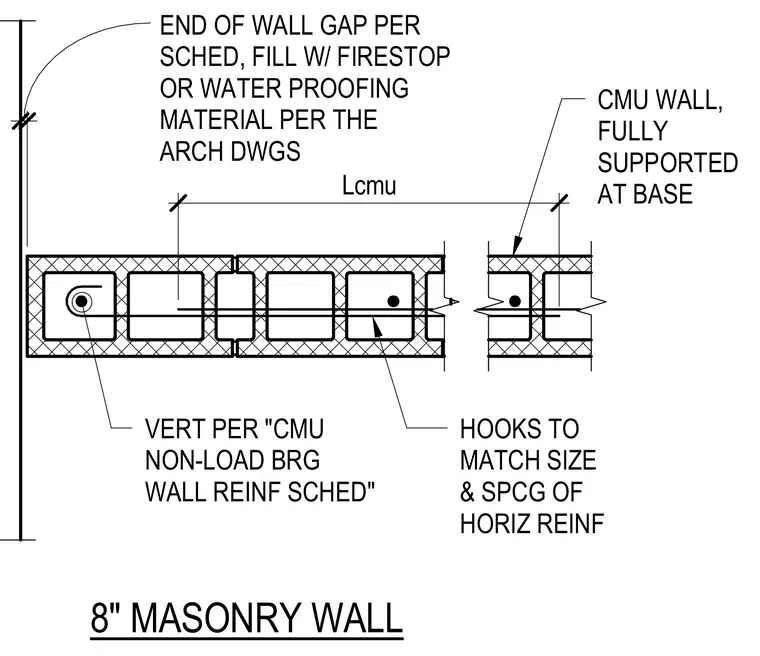

An eight-inch concrete masonry unit wall is fully supported at the base with vertical reinforcing sized per the non-load bearing wall reinforcement schedule. Horizontal reinforcement hooks match the size and spacing of the horizontal reinforcing. An end-of-wall gap is provided per the schedule and filled with firestop or waterproofing material per the architectural drawings.
1/2" CMU WALL, FULLY SUPPORTED AT BASE VERT PER "CMU NON-LOAD BRG WALL REINF SCHED" 8" MASONRY WALL 29" Lcmu HOOKS TO MATCH SIZE & SPCG OF HORIZ REINF END OF WALL GAP PER SCHED, FILL W/ FIRESTOP OR WATER PROOFING MATERIAL PER THE ARCH DWGS
