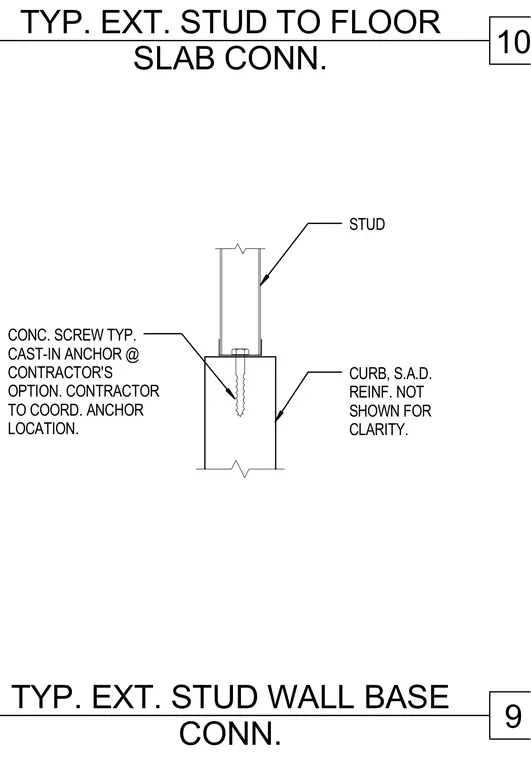

An exterior wall stud connects to a concrete curb or floor slab using a typical concrete screw or a cast-in anchor provided at the contractor's option. The contractor coordinates the anchor location. Reinforcing steel is omitted from the concrete curb for clarity.
CURB, S.A.D. REINF. NOT SHOWN FOR CLARITY. STUD CONC. SCREW TYP. CAST-IN ANCHOR @ CONTRACTOR'S OPTION. CONTRACTOR TO COORD. ANCHOR LOCATION. 10 TYP. EXT. STUD TO FLOOR SLAB CONN. 9 TYP. EXT. STUD WALL BASE CONN.
