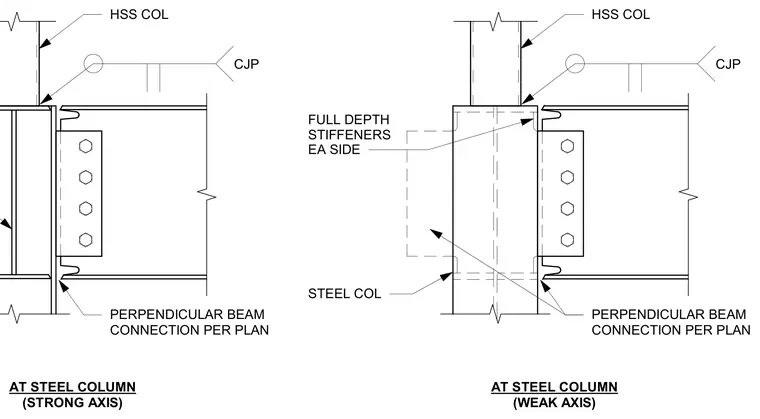

A hollow structural section column connects to a perpendicular beam using complete joint penetration welds at the top and bottom flanges, supplemented by a bolted shear tab on the web. At the weak axis configuration, full-depth stiffener plates are provided on each side of the steel column aligned with the beam flanges. The beam web connects with a vertical plate secured by four bolts. All connections are detailed for both strong and weak axis orientations per the structural plan.
AT STEEL COLUMN (STRONG AXIS) CJP HSS COL PERPENDICULAR BEAM CONNECTION PER PLAN AT STEEL COLUMN (WEAK AXIS) CJP HSS COL PERPENDICULAR BEAM CONNECTION PER PLAN STEEL COL FULL DEPTH STIFFENERS EA SIDE
