Structural · S-JKCPN

Hanger Attachment to Structure Above

Materials

Elements

Beams Floors / Slabs Decks Connections / Plates

About this detail

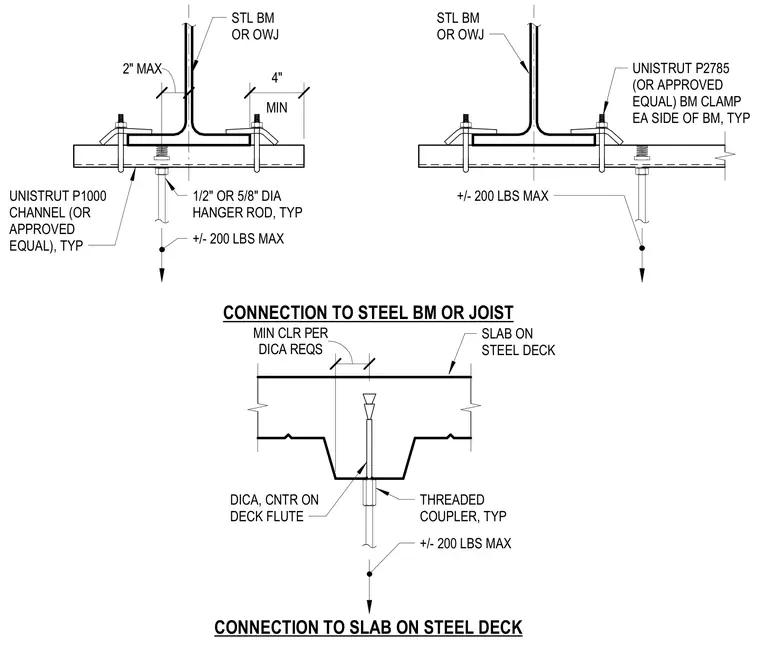

Suspended hanger rod attachments anchor to steel beams, open web steel joists, and concrete slabs on metal deck. Steel beam attachments use Unistrut P1000 channels paired with Unistrut P2785 beam clamps positioned on each side of the steel beam flange, supporting one-half-inch or five-eighths-inch diameter threaded hanger rods rated for up to two hundred pounds maximum. Concrete slab attachments utilize a threaded coupler centered within the deck flute, anchored to the slab on steel deck. Minimum clearances comply with manufacturer requirements.
