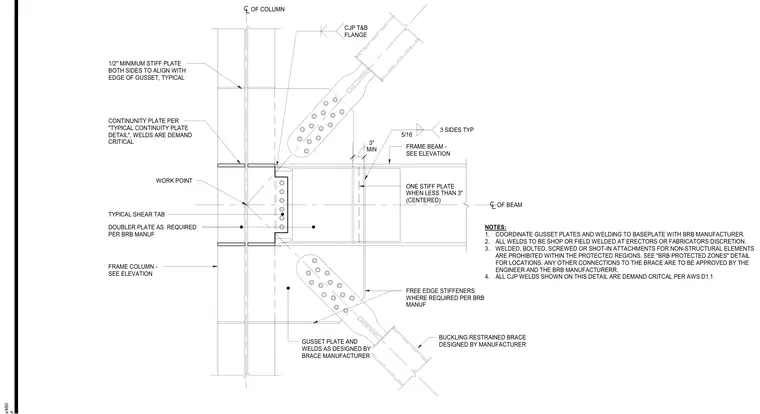

A buckling-restrained brace connects to a steel column web with a bolted gusset plate assembly. The frame beam frames into the column via a typical shear tab with five vertical bolts. Continuity plates are provided per the typical continuity plate detail, and all corresponding welds are designated as demand critical. A half-inch minimum stiffener plate is placed on both sides to align with the edge of the gusset. Additional stiffener plates are included when less than 3 inches, along with free edge stiffeners where required by the brace manufacturer. Complete joint penetration welds on the top and bottom flange are also marked as demand critical per AWS D1.1.
WORK POINT NOTES: 1. COORDINATE GUSSET PLATES AND WELDING TO BASEPLATE WITH BRB MANUFACTURER. 2. ALL WELDS TO BE SHOP OR FIELD WELDED AT ERECTORS OR FABRICATORS DISCRETION. 3. WELDED, BOLTED, SCREWED OR SHOT-IN ATTACHMENTS FOR NON-STRUCTURAL ELEMENTS ARE PROHIBITED WITHIN THE PROTECTED REGIONS. SEE "BRB PROTECTED ZONES" DETAIL FOR LOCATIONS. ANY OTHER CONNECTIONS TO THE BRACE ARE TO BE APPROVED BY THE ENGINEER AND THE BRB MANUFACTURERR. 4. ALL CJP WELDS SHOWN ON THIS DETAIL ARE DEMAND CRITCAL PER AWS D1.1 BUCKLING RESTRAINED BRACE DESIGNED BY MANUFACTURER GUSSET PLATE AND WELDS AS DESIGNED BY BRACE MANUFACTURER FRAME COLUMN - SEE ELEVATION 5/16 3 SIDES TYP ONE STIFF PLATE WHEN LESS THAN 3" (CENTERED) 3" MIN DOUBLER PLATE AS REQUIRED PER BRB MANUF CJP T&B FLANGE FREE EDGE STIFFENERS WHERE REQUIRED PER BRB MANUF FRAME BEAM - SEE ELEVATION CONTINUNITY PLATE PER "TYPICAL CONTINUITY PLATE DETAIL", WELDS ARE DEMAND CRITICAL 1/2'' MINIMUM STIFF PLATE BOTH SIDES TO ALIGN WITH EDGE OF GUSSET, TYPICAL OF COLUMN OF BEAM TYPICAL SHEAR TAB
