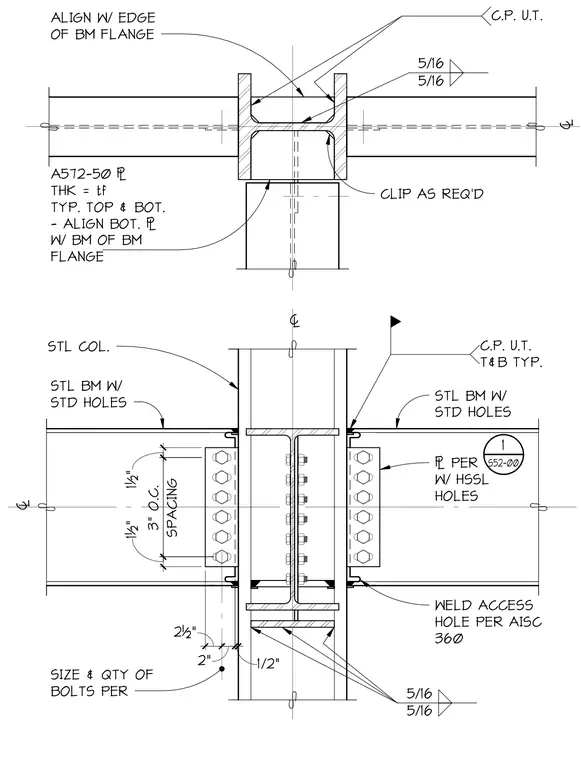

Steel floor beams connect to a structural steel column using a bolted shear tab on the web and A572-50 steel plates welded to the top and bottom flanges. The shear tabs feature standard holes spaced at three inches on center with edge distances of one and a half and two and a half inches. Flange plates match the thickness of the beam flange, align flush with the flange edges, and use five-sixteenths inch fillet welds. Column web stiffener plates are welded top and bottom with five-sixteenths inch welds, and weld access holes are detailed per AISC 360 specifications.
STL COL. SIZE & QTY OF BOLTS PER SPACING 3" O.C. 1½" 1½" STL BM W/ STD HOLES 2" 1/2" 2½" PER W/ HSSL HOLES 1 S52-00 WELD ACCESS HOLE PER AISC 360 STL BM W/ STD HOLES C.P. U.T. T&B TYP. 5/16 5/16 CLIP AS REQ'D A572-50 THK = tf TYP. TOP & BOT. - ALIGN BOT. W/ BM OF BM FLANGE C.P. U.T. 5/16 5/16 ALIGN W/ EDGE OF BM FLANGE
