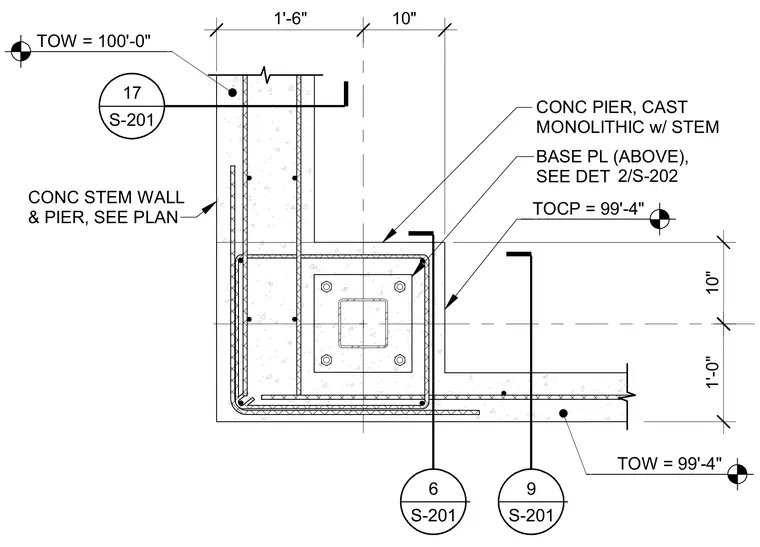

A reinforced concrete stem wall and pier corner assembly features a concrete pier cast monolithically with the stem wall. A base plate is located above and coordinated with a separate detail. Continuous reinforcing steel details and corner elevations are referenced to structural drawings.
TOCP = 99'-4" TOW = 100'-0" TOW = 99'-4" 1'-0" 10" BASE PL (ABOVE), SEE DET . CONC STEM WALL & PIER, SEE PLAN CONC PIER, CAST MONOLITHIC w/ STEM . 1'-6" 10" 2/S-202 . . 17 S-201 _______________ 6 S-201 _______________ 9 S-201 _______________
