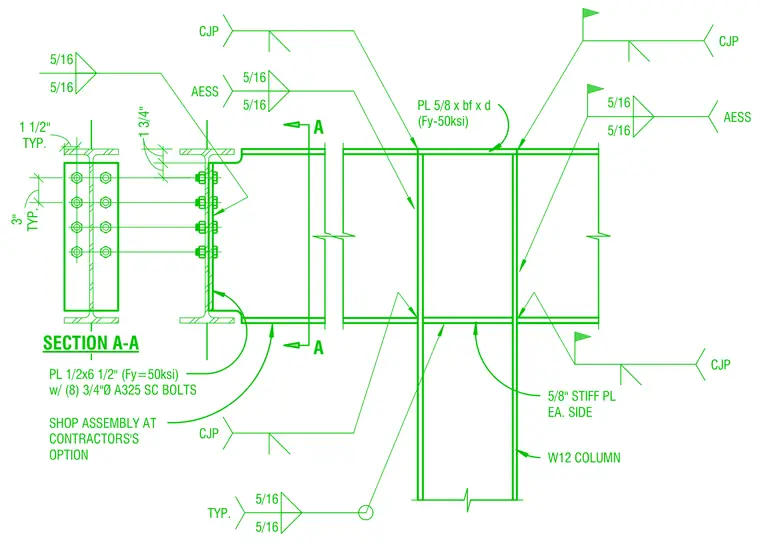

A W21 canopy beam frames into a W12 structural steel column with architecturally exposed structural steel welds and plates. The connection features a five-eighths inch thick plate matching the beam flange width and depth, welded with complete joint penetration welds and field weld symbols. Five-eighths inch stiffener plates are provided on each side of the column web. The beam web connects using a one-half inch by six-and-one-half-inch plate with eight three-quarter-inch diameter A325 slip-critical bolts, with shop assembly permitted at the contractor's option. Five-sixteenth inch fillet welds are specified typically throughout.
1 3/4" 1 3/4" TYP. 1 1/2" TYP. 3" A A PL 1/2x6 1/2" (Fy=50ksi) w/ (8) 3/4"Ø A325 SC BOLTS SHOP ASSEMBLY AT CONTRACTORS'S OPTION CJP 5/16 5/16 TYP. W12 COLUMN 5/8" STIFF PL EA. SIDE CJP SECTION A-A 5/16 5/16 AESS CJP PL 5/8 x bf x d (Fy-50ksi) 5/16 5/16 5/16 5/16 AESS CJP
