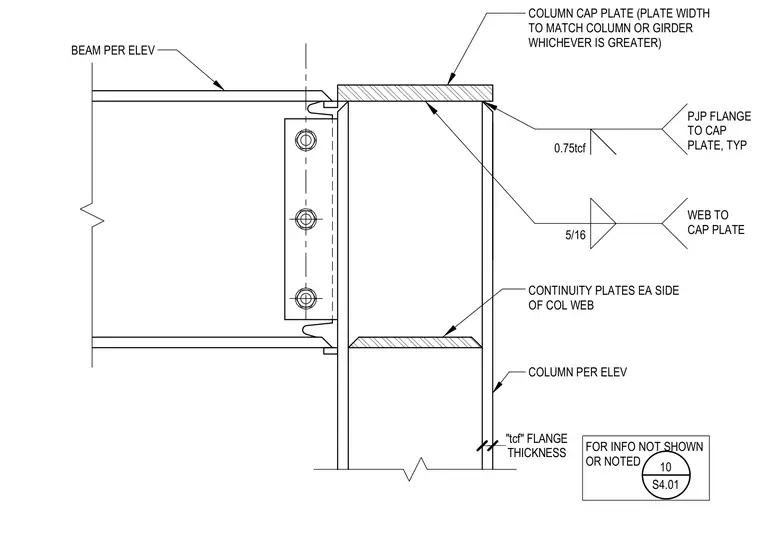

A steel beam frames into a column flange using a shear tab with three bolts. A column cap plate spans the top of the column, sized to match the column or girder width whichever is greater. The beam flange connects to the cap plate with a partial-joint-penetration weld, typically with a thickness equal to 0.75 times the column flange thickness. The web connects to the cap plate with a five-sixteenths-inch fillet weld. Continuity plates are provided on each side of the column web aligned with the beam flanges.
PJP FLANGE TO CAP PLATE, TYP 0.75tcf 5/16 WEB TO CAP PLATE CONTINUITY PLATES EA SIDE OF COL WEB BEAM PER ELEV COLUMN CAP PLATE (PLATE WIDTH TO MATCH COLUMN OR GIRDER WHICHEVER IS GREATER) COLUMN PER ELEV FOR INFO NOT SHOWN OR NOTED 10 S4.01 THICKNESS "tcf" FLANGE
